No. 8 Auto Hold Does Not Work: Notes

SM2335156

NO. 8 AUTO HOLD DOES NOT WORK DETECTION CONDITION AND POSSIBLE CAUSE

Troubleshooting item	AUTOHOLD does not work

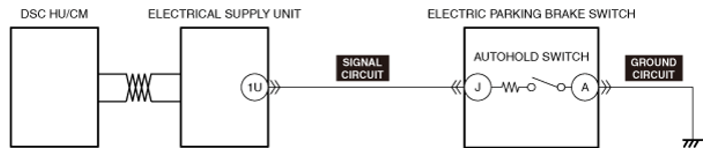

Possible cause	Stuck AUTOHOLD switch in off position Electrical supply unit (ESU) detects a malfunction Open circuit in AUTOHOLD switch signal circuit Open circuit in AUTOHOLD switch ground circuit
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.	Courtesy of MAZDA MOTORS CORP.
