Rear side switch (LR)

  1. Disconnect the negative battery terminal.
  2. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  3. Verify that the resistance between power window main switch terminals D and P is as indicated in the table.

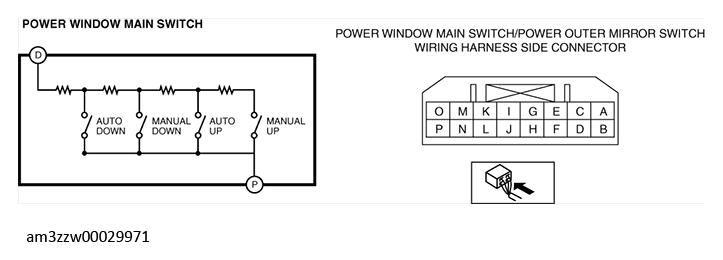

    G13178688Courtesy of MAZDA MOTORS CORP.
    RESISTANCE REFERENCE

    Switch Position Resistance (ohm) Terminal
    Auto Down 297.0-303.0 D-P
    Manual Down 445.5-454.5
    Auto Up 683.1-696.9
    Manual Up 1069.2-1090.8
