Auto-dimming Outer Mirror Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

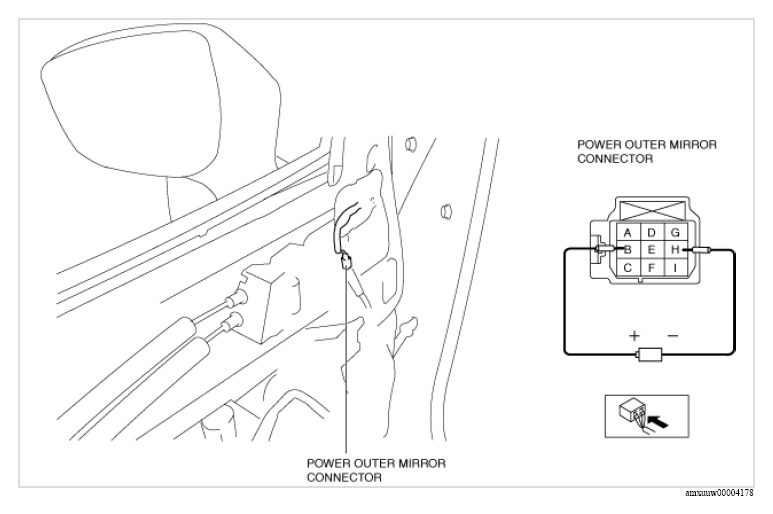

- Disconnect the power outer mirror connector.
- Connect the power outer mirror connector terminal B to a dry cell battery's plus (+) terminal (1.2 V) and terminal H to its minus terminal.

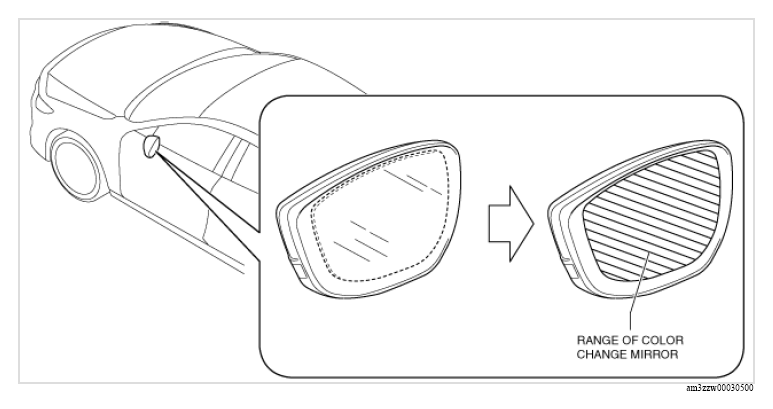

- Verify that the mirror side of the outer mirror glass changes color.
- If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION .)
- If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
