Power Seat System Does Not Operate: Outline

POWER SEAT SYSTEM DOES NOT OPERATE DETECTION CONDITION AND POSSIBLE CAUSE

Description	The power seat does not operate even though the power seat switch is operated.

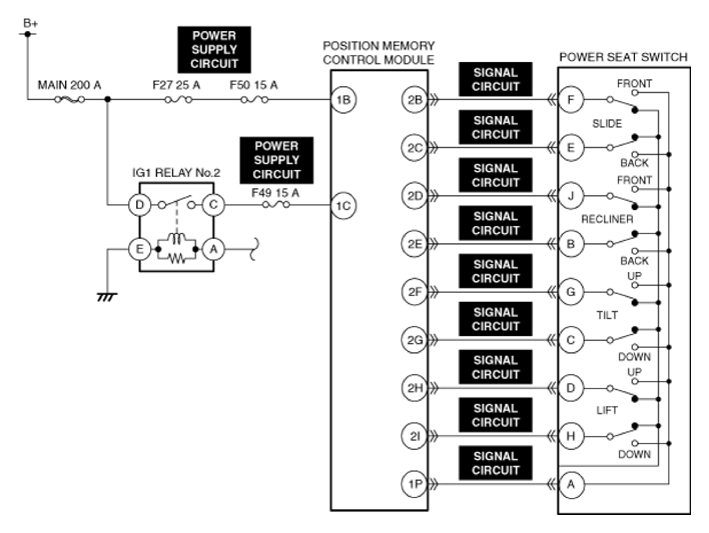

Possible cause	Connector or terminal malfunction of the following parts: Position memory control module Power seat switch Short or open circuit to ground in the following wiring harnesses Position memory control module power supply circuit Power seat switch signal circuit Power seat switch malfunction Position memory control module malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.	Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
