On-Board Diagnostic Wiring Diagram (Adaptive Front Lighting System (AFS) Control Module)

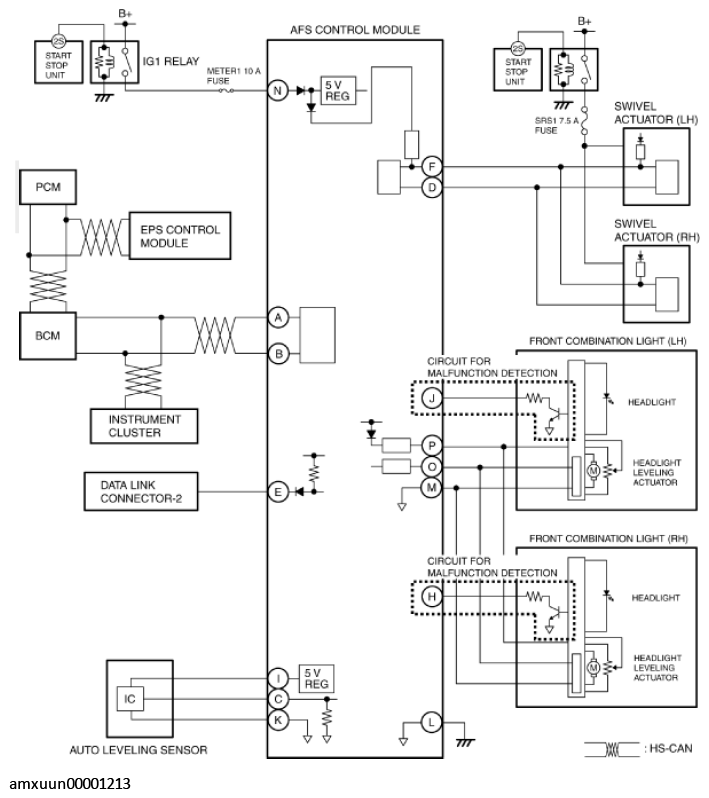

Fig 1: Adaptive Front Lighting System Control Module - On-Board Diagnostic Wiring Diagram
G11279630Courtesy of MAZDA MOTORS CORP.
