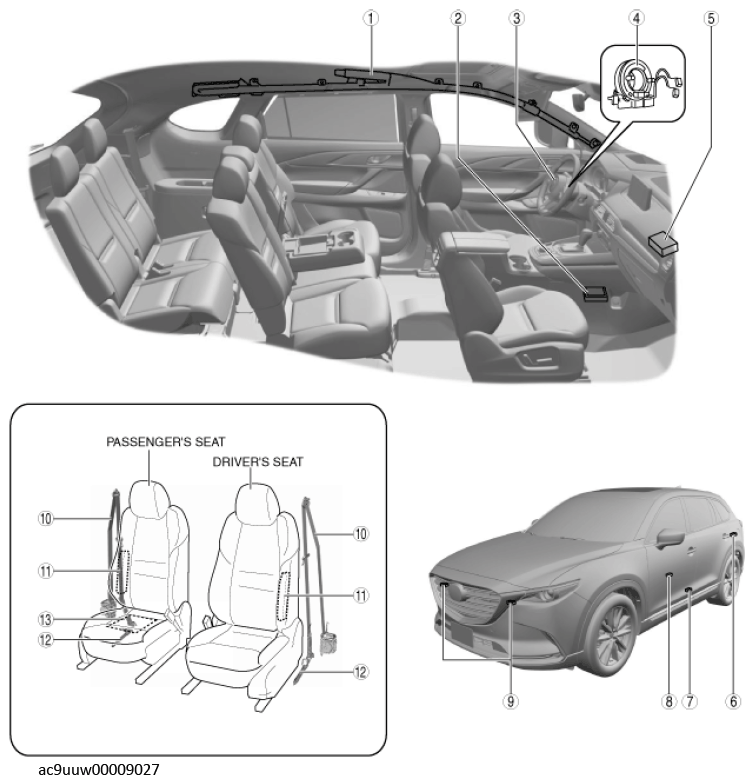

| 1 |
Curtain air bag module
(See
Curtain Air Bag Module Removal/Installation (Two-Step Deployment Control System) .)
(See
Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .) |
| 2 |
SAS control module
(See
SAS Control Module Removal/Installation (Two-Step Deployment Control System) .)
(See
SAS Control Module Configuration (Using Read/Write Function) (Two-Step Deployment Control System) .)
(See
SAS Control Module Configuration (Using As-Built Data) (Two-Step Deployment Control System) .) |
| 3 |
Driver-side air bag module
(See
Driver-Side Air Bag Module Removal (Two-Step Deployment Control System) .)
(See
Driver-Side Air Bag Module Installation (Two-Step Deployment Control System) .)
(See
Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .) |
| 4 |
Clock spring
(See
Clock Spring Removal/Installation (Two-Step Deployment Control System) .)
(See
Clock Spring Adjustment (Two-Step Deployment Control System) .)
(See
Clock Spring Inspection (Two-Step Deployment Control System) .) |
| 5 |
Passenger-side air bag module
(See
Passenger-Side Air Bag Module Removal/Installation (Two-Step Deployment Control System) .)
(See
Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .) |
| 6 |
Side air bag sensor No. 2
(See
Side Air Bag Sensor No. 2 Removal/Installation (Two-Step Deployment Control System) .) |
| 7 |
Side air bag sensor No. 1
(See
Side Air Bag Sensor No. 1 Removal/Installation (Two-Step Deployment Control System) .) |
| 8 |
Pressure sensor
(See
Pressure Sensor Removal/Installation (Two-Step Deployment Control System) .) |
| 9 |
Crash zone sensor
(See
Crash Zone Sensor Removal/Installation (Two-Step Deployment Control System) .) |
| 10 |
Pre-tensioner seat belt
(See
FRONT SEAT BELT REMOVAL/INSTALLATION
.)
(See
Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .) |
| 11 |
Side air bag module
(See
Side Air Bag Module Removal/Installation (Two-Step Deployment Control System) .)
(See
Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .) |
| 12 |
Lap pre-tensioner seat belt
(See
FRONT SEAT BELT REMOVAL/INSTALLATION
.)
(See
Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .) |
| 13 |
Occupant classification sensor
(See
Occupant Classification Sensor Removal/Installation (Two-Step Deployment Control System) .)
(See
Occupant Classification Sensor Calibration (Two-Step Deployment Control System) .)
(See
Occupant Classification Sensor Inspection (Two-Step Deployment Control System) .) |
