Foreword (Blind Spot Monitoring (BSM) Control Module)
>>
Troubleshooting Procedure
Troubleshooting Procedure

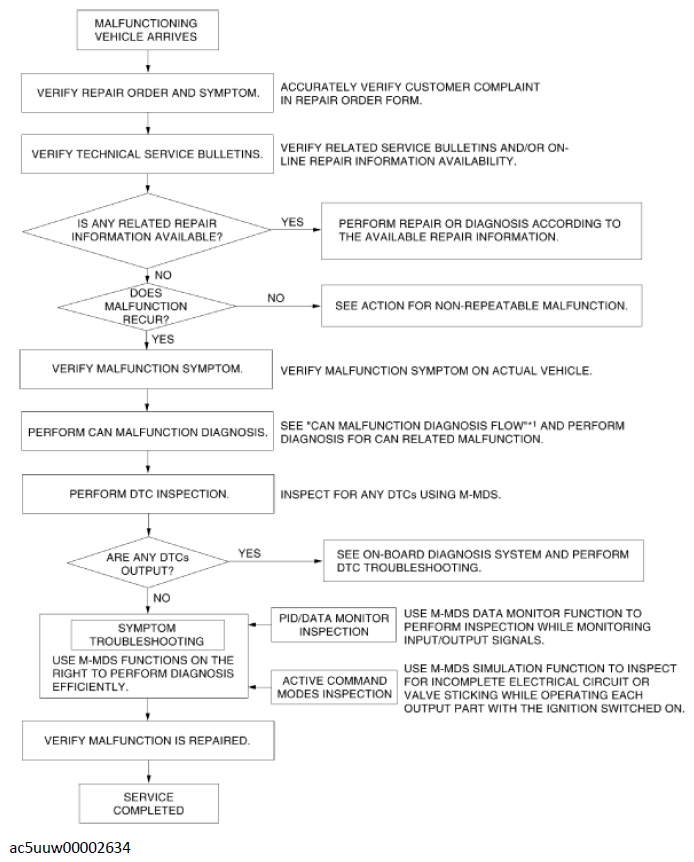

Fig 1: Electric Parking Brake Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
*1:(See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
