DTC B1088-88: Lin Communication Error: Notes

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1088:88 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	LIN communication error
Detection Condition	LIN bus communication line malfunction detected for 1 s or more
Fail-safe	Not applicable

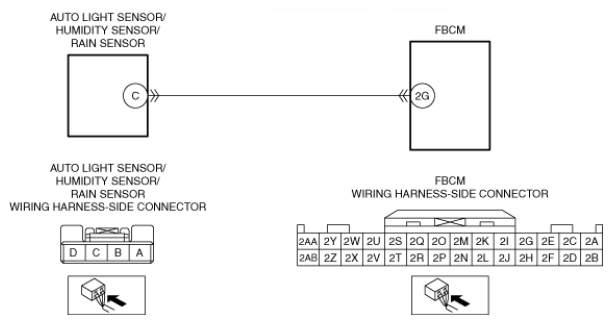

Possible Cause	Malfunction in LIN bus communication line Auto light sensor/humidity sensor/rain sensor terminal C-Front body control module (FBCM) terminal 2G (With auto light sensor/humidity sensor/rain sensor) Front body control module (FBCM) malfunction
