Dynamic Stability Control System Wiring Diagram (Dynamic Stability Control (DSC))
Dynamic Stability Control System Wiring Diagram (Dynamic Stability Control (DSC))

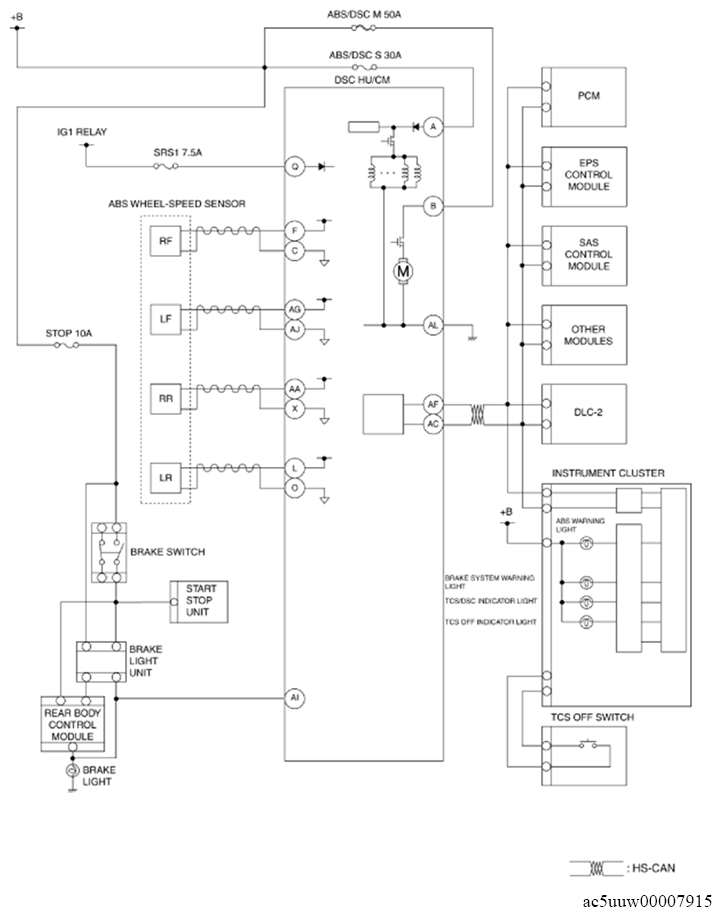

Fig 1: Dynamic Stability Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
