DTC P0117-00: ECT Sensor No. 1 Circuit Low Input: Notes
DTC P0117:00 PCM (SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0117:00 |
ECT Sensor No. 1 Circuit Low Input |
| DETECTION CONDITION |
- The PCM monitors the ECT sensor No. 1 signal. If the PCM detects that the ECT sensor No. 1 voltage at the PCM terminal 1AH is below 0.2 V for 5 s, the PCM determines that the ECT sensor No. 1 circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (engine cooling system).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Fixes the water temperature for the engine control at 40°C {104°F}, and for the idle air control at 80°C {176°F}.
- Operates the cooling fan (high speed rotation).
- Inhibits the fuel cut control during shift change.
|
| POSSIBLE CAUSE |
- Engine overheating (cooling system malfunction)
- ECT sensor No. 1 connector or terminals malfunction
- ECT sensor No. 1 malfunction
- PCM connector or terminals malfunction

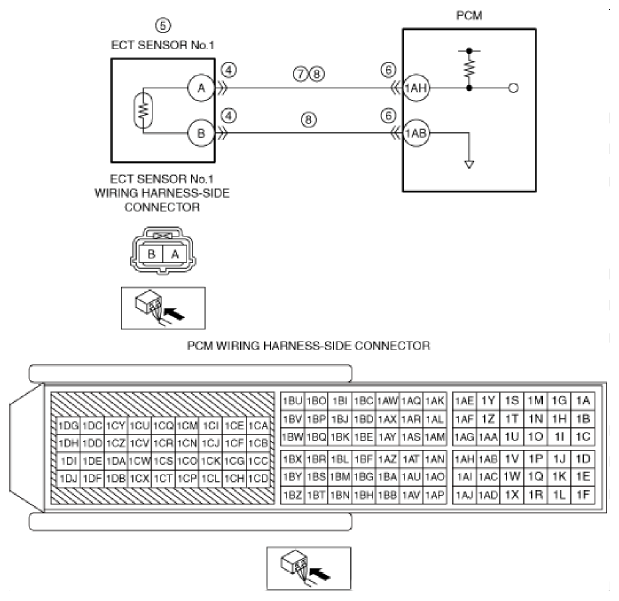

- Short to ground in wiring harness between ECT sensor No. 1 terminal A and PCM terminal 1AH
- ECT sensor No. 1 signal circuit and ground circuit are shorted to each other
- PCM malfunction
|
|
|
