Section 4 (On-Board Diagnostics - AWD System)
>>
Wiring Diagram [AWD Control Module]
Wiring Diagram [AWD Control Module]
WARNING:
This page is about a different variant/trim than selected.

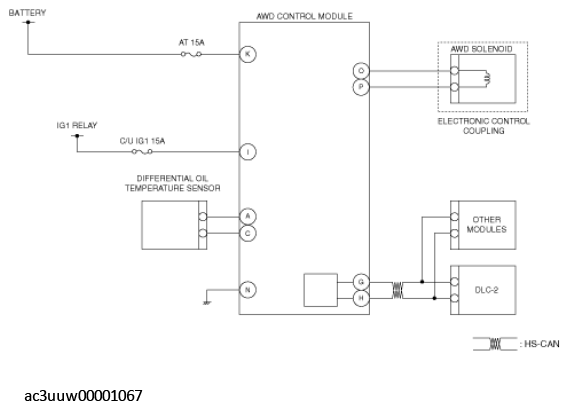

Fig 1: AWD Control Module Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
