Automatic Transaxle Control System Wiring Diagram

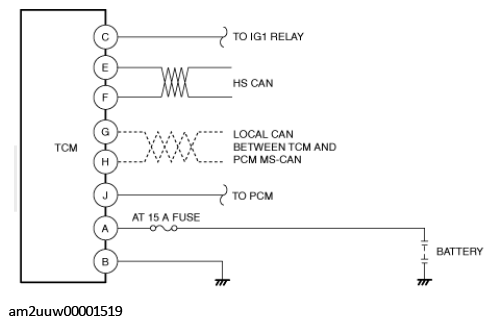

Fig 1: Automatic Transaxle Control System Wiring Diagram [EW6A-EL/ EW6AX-EL]

G11438256

Courtesy of MAZDA
