Section 229 (On-Board Diagnostic - Parking Sensor Control Module)
>>
On-Board Diagnostic Wiring Diagram (Parking Sensor Control Module)
On-Board Diagnostic Wiring Diagram (Parking Sensor Control Module)
WARNING:
This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
Parking sensor system

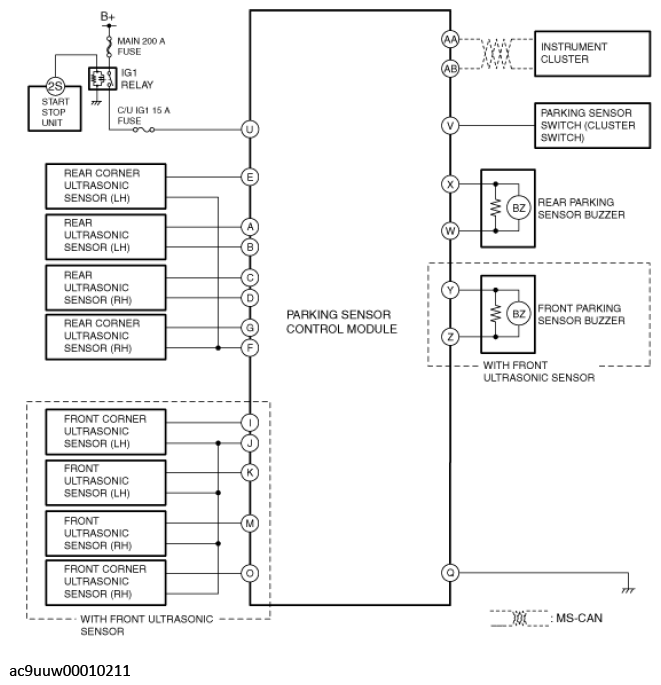

Fig 1: Parking Sensor Control Module - On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
