Front Brake Disc Removal/Installation (With 2-Piston Floating Caliper): Notes

WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

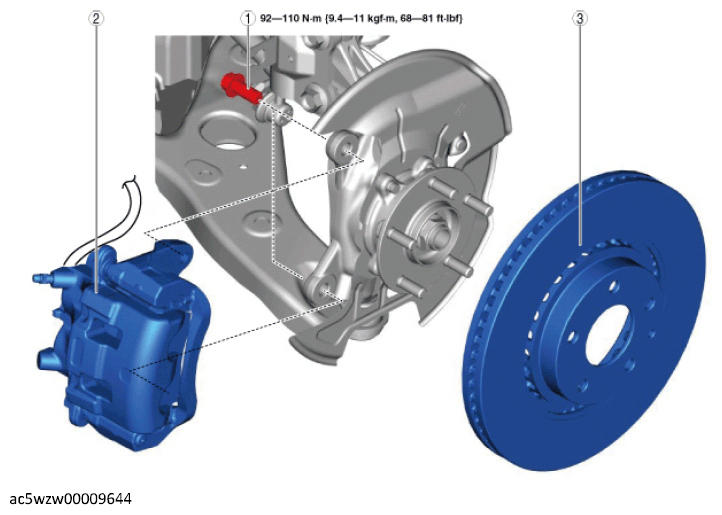

    Fig 1: Front Brake Disc Components With Torque Specification
    G12188843Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    2 Front brake caliper component
    (See Front Brake Caliper Component Removal Note .)
    (See Front Brake Caliper Component Installation Note .)
    3 Disc plate
