On-Board Diagnostic - Engine Control System (1 Of 4)
>>
DTC P0132-00; A/F Sensor Circuit High Input
>>
System Wiring Diagram
System Wiring Diagram

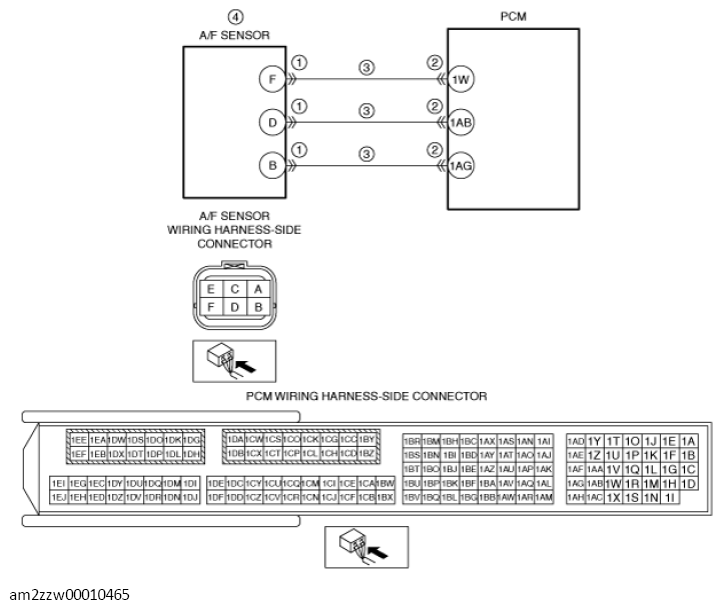

Fig 1: A/F Sensor And PCM System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
