DTC C0089-64; TCS OFF Switch: Notes
DTC C0089-64; TCS OFF SWITCH DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
C0089:64 |
TCS OFF switch |
| DETECTION CONDITION |
- TCS OFF is switched ON continuously for 10 s or more is detected.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- The TCS OFF switch is pressed and held for 10 s or more

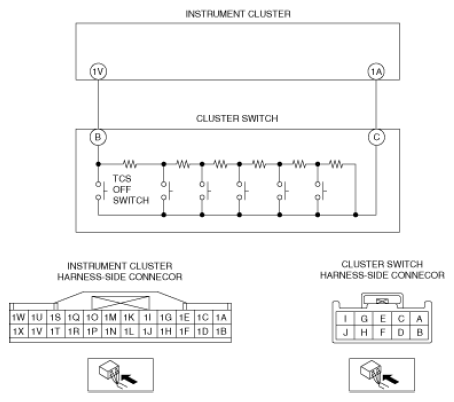

- Short to ground circuit in wiring harness between instrument cluster terminal 1V and cluster switch terminal B
- TCS OFF switch malfunction
- Poor connection at each connector
- DSC HU/CM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
