Neutral Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case
- Air hose
- Resonance chamber
Remove in the order indicated in the table.
Install in the reverse order of removal.

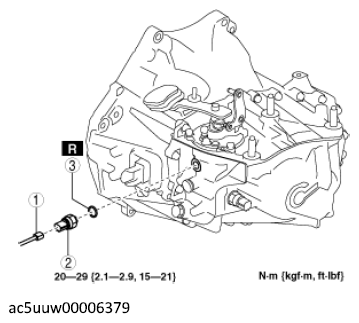

Fig 1: Neutral Switch Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION
