Driver-Side Without Memory Power Seat

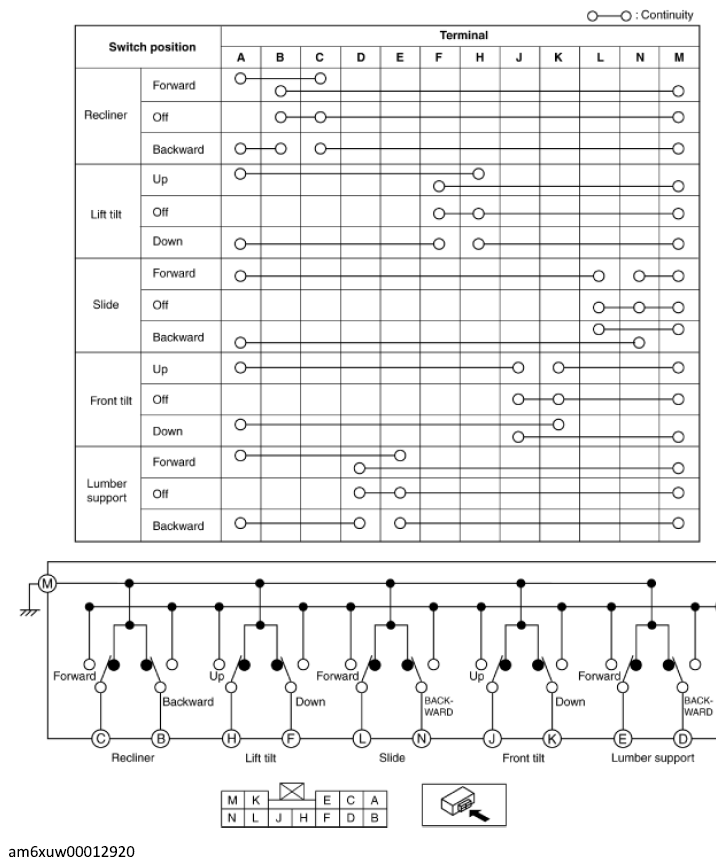

Fig 1: Power Seat Switch Circuit Diagram - Driver-Side Without Memory Power Seat

G12236116

Courtesy of MAZDA MOTORS CORP.
