Driver-Side Air Bag Module Installation [Standard Deployment Control System]

WARNING:

Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] ). (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] ).

Point the upper side of the driver-side air bag module towards the steering wheel as shown in the figure.

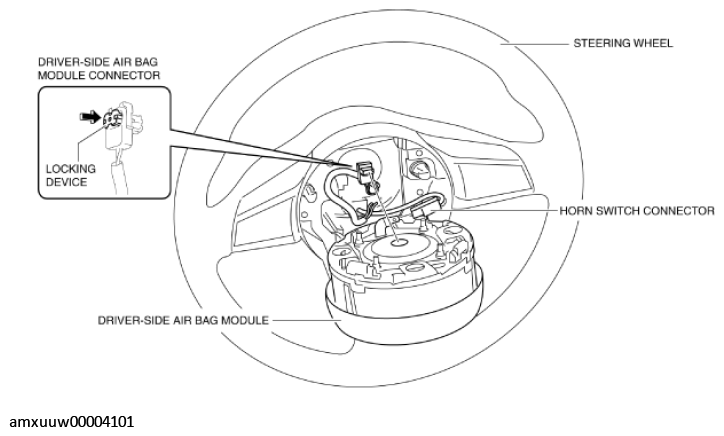

Fig 1: Connecting Horn Switch Connector
Courtesy of MAZDA MOTORS CORP.
Connect the horn switch connector.
Connect the driver-side air bag module connector and press in the locking device.
Move the driver-side air bag module in the direction of the arrow.

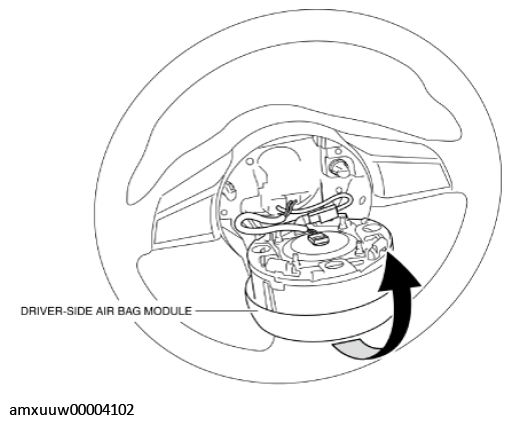

Fig 2: Moving Driver-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.
Rotate the driver-side air bag module clockwise 180 degrees.

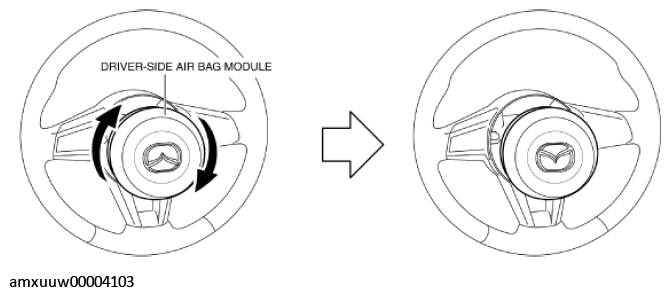

Fig 3: Rotating Driver-Side Air Bag Module Clockwise
Courtesy of MAZDA MOTORS CORP.
Lift the driver-side air bag module wiring harness in the direction of the arrow shown in the figure.

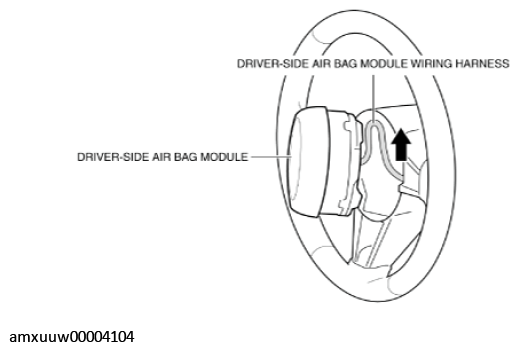

Fig 4: Lifting Driver-Side Air Bag Module Wiring Harness
Courtesy of MAZDA MOTORS CORP.
Align the driver-side air bag module holes with the steering wheel tabs.

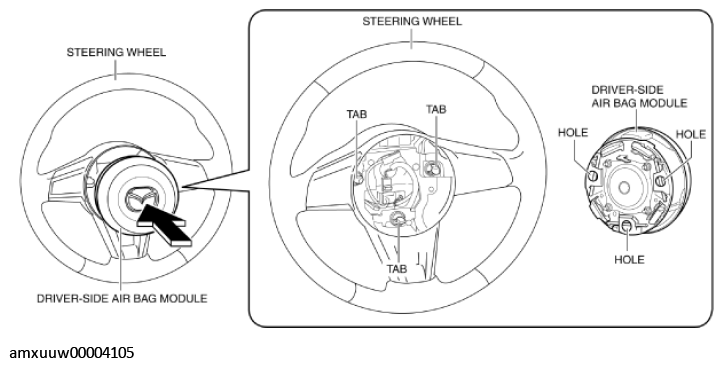

Fig 5: Aligning Driver-Side Air Bag Module Holes With Steering Wheel Tabs
Courtesy of MAZDA MOTORS CORP.
Press the driver-side air bag module in the direction of the arrow shown in the figure and attach the tabs.
CAUTION:
- If the driver-side air bag module is installed with the wiring harness contacting the steering wheel tabs, the wiring harness may be damaged. Carefully install the driver-side air bag module while verifying that the wiring harness does not contact the tabs.
Verify that the driver-side air bag module is securely installed.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)] ).
