Setting method by operation of door lock switch

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

The following setting can be changed by operation of the door lock switch.

M-MDS display	Function	Initial setting	Setting contents	Control unit
Auto Door Lock Mode	Auto door lock function can be changed.	Lock: Driving, Unlock: IGN Off.	Off/Lock: When Driving, Unlock: In Park./Lock When Driving./Lock: Driving, Unlock: IGN Off./Lock When Shifting Out Of P./Lock: Shift From P, Unlock: In P.	BCM

Change the setting for the auto door lock referring to the following procedure:

NOTE:

If any of the following conditions is met during procedure, the setting change for the auto door lock is stopped.
- Lock side of the door lock switch is pressed while in the personalization mode.
- Unlock side of the door lock switch is pressed 7 times while in the personalization mode. (AT)
- Unlock side of the door lock switch is pressed 4 times while in the personalization mode. (MT)

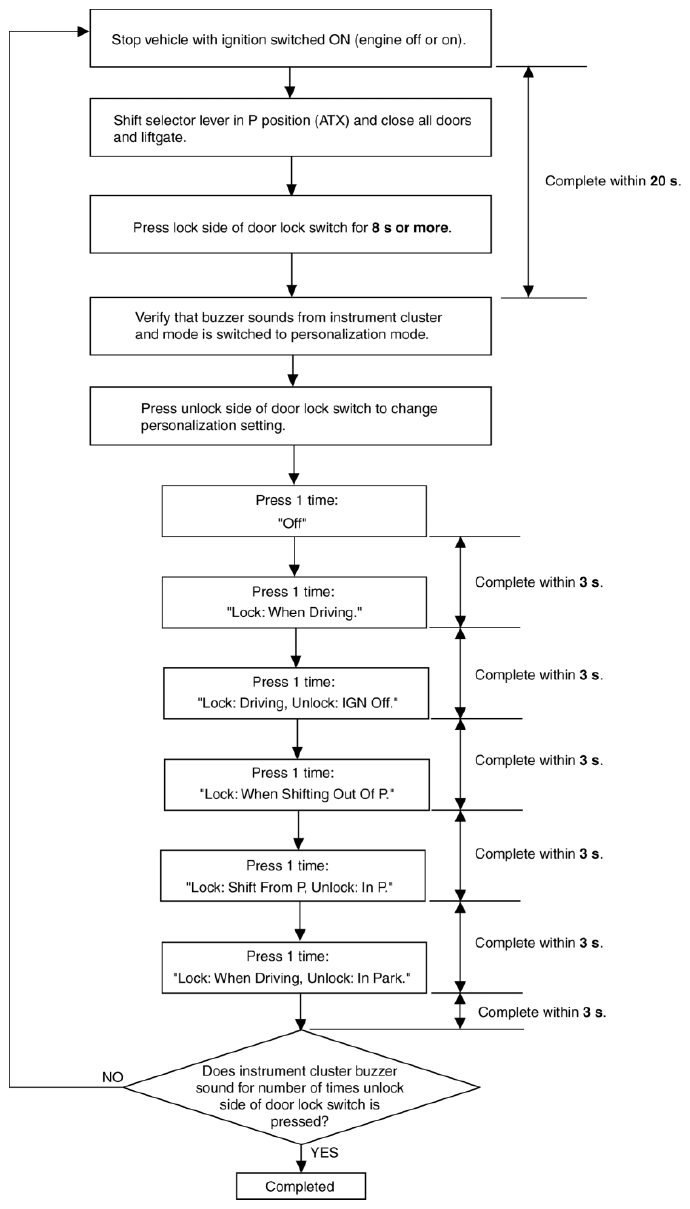

Fig 1: Door Lock Switch Personalization Mode Timing Chart

Courtesy of MAZDA MOTORS CORP.
