Clock Spring Connector B Disconnect Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

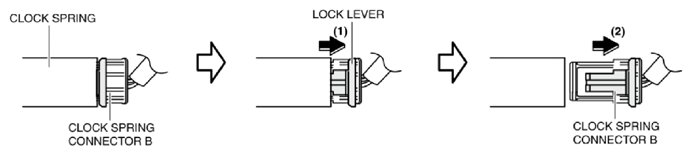

  1. Pull out the clock spring connector B lock lever in the direction of arrow (1) shown in the figure.
    Fig 1: Pulling Out Clock Spring Connector B Lock Lever
    G10953587Courtesy of MAZDA MOTORS CORP.
  2. Move the clock spring connector B in the direction of arrow (2) shown in the figure to disconnect it.
