Steering Column Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always lock the tilt lever to prevent damage to the steering column. In addition, do not unlock the tilt lever until the steering column installation is completed.
If the steering column is installed, install it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is installed in the incorrect order.

Verify that the tilt lever of the steering column is locked.

Fig 1: Installing Steering Column
Courtesy of MAZDA MOTORS CORP.
Install the clip to the steering column.
Temporarily install the steering column to the dashboard member using nuts A and B.

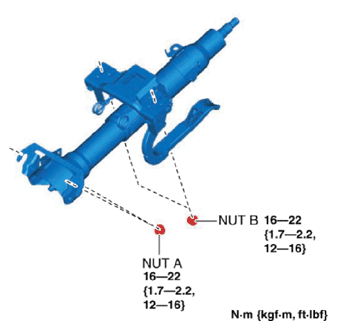

Fig 2: Installing Steering Column To Dashboard Member Using Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the nuts in the order of nut A and nut B.

Fig 3: Steering Column To Dashboard Member Nuts Tightening Order
Courtesy of MAZDA MOTORS CORP.
Install the intermediate shaft (upper) with the alignment marks on the intermediate shaft (upper) and the clip, which were marked before removing the steering column, aligned.

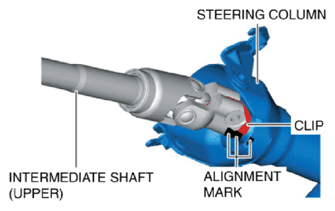

Fig 4: Identifying Alignment Marks On Intermediate Shaft (Upper) And Clip
Courtesy of MAZDA MOTORS CORP.
NOTE:
- When replacing the steering column with a new one, place an alignment mark on the new part in the same position as the removed steering column.
Fig 5: Identifying Steering Column With Alignment Mark
Courtesy of MAZDA MOTORS CORP.
Verify that the semicircular shape of the clip and U-shape groove of the steering column matches and joint bolt B can be inserted.

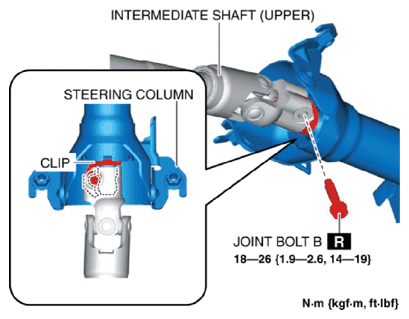

Fig 6: Installing Steering Column Joint Bolt B
Courtesy of MAZDA MOTORS CORP.
Install the joint bolt B.
