Air Intake Hose No. 1 Installation Note

Install the air intake hose No. 1 as shown in the figure below.

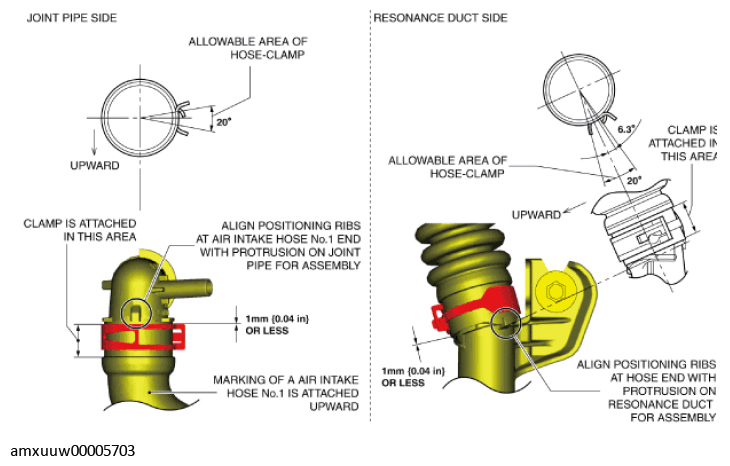

Fig 1: Installing Air Intake Hose No. 1

G11274497

Courtesy of MAZDA MOTORS CORP.
