Clearance Inspection Procedure

Measure the gap between the rear ABS wheel -speed sensor and ABS sensor rotor using a feeler gauge.

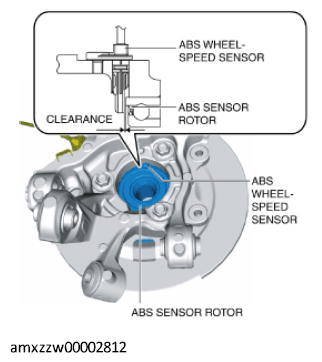

Fig 1: Checking Rear ABS Wheel Speed Sensor And ABS Sensor Rotor Gap Using Feeler Gauge
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the rear ABS wheel -speed sensor. (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION ).
Clearance

0.810-1.443 mm {0.0319-0.0568 in}
