| Detection condition |
- The retractable fastback control module detects Hall effect switch power supply voltage of less than 4 V.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

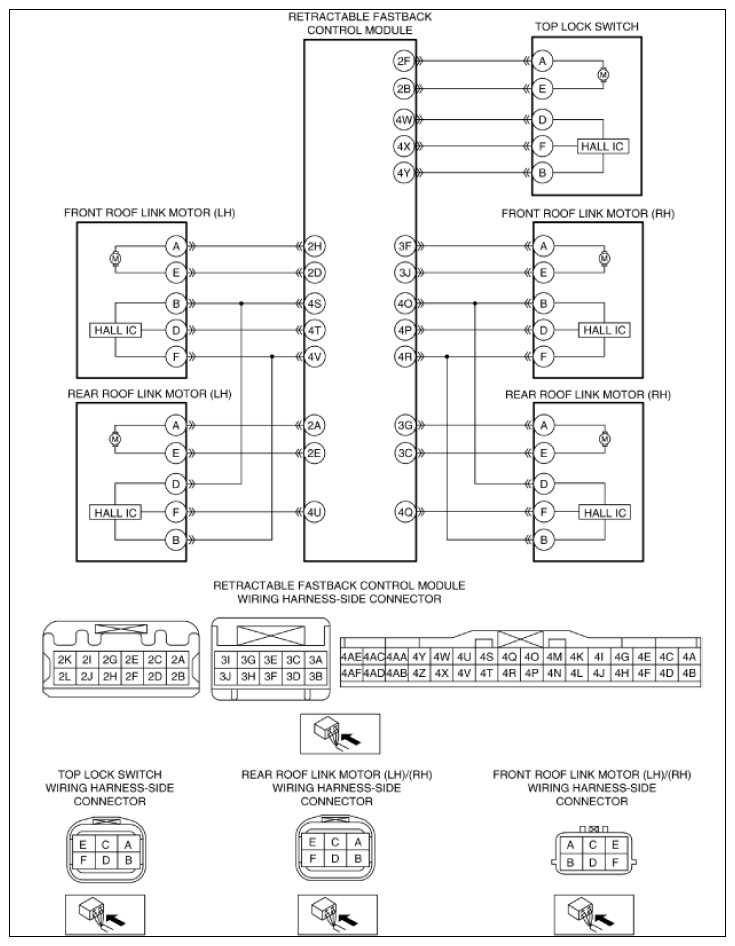

- Short to ground in wiring harness between retractable fastback control module terminal 4P and front roof link motor (RH) terminal B
- Short to ground in wiring harness between retractable fastback control module terminal 4T and front roof link motor (LH) terminal B
- Short to ground in wiring harness between retractable fastback control module terminal 4Q and rear roof link motor (RH) terminal D
- Short to ground in wiring harness between retractable fastback control module terminal 4U and rear roof link motor (RH) terminal D
- Short to ground in wiring harness between retractable fastback control module terminal 4X and top lock motor terminal D
- Retractable fastback control module malfunction
|
