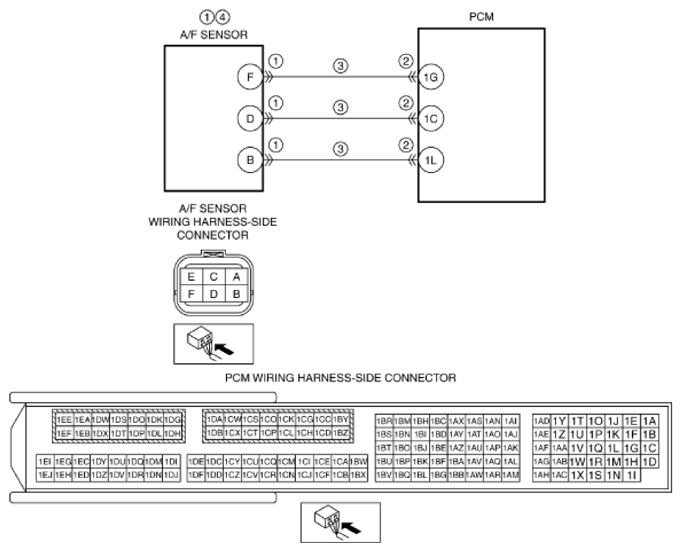

Home >> Mazda >> 2017 >> CX-9 Signature >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic - Engine Control System (1 Of 5) >> DTC P0132-00; A/F Sensor Circuit High Input >> System Wiring Diagram
