Engine Start/Stop Procedure With Room Fuse Removed (01-011/18)

Publication date: 2019-01-10
Reference number: 01-011/18
Supersedes refnos: 01-001/16, 01-006/12, 01-006/19

ENGINE START/STOP PROCEDURE WITH ROOM FUSE REMOVED

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-006/19, Date of Issue: January 10, 2019

MAZDA:

2016-2019 CX-3; 2013-2019 CX-5; 2016-2019 CX-9; 2014-2019 Mazda3; 2014-2019 Mazda6; 2016-2019 MX-5

Superceded Bulletin(s): 01-011/18, Date of Issue: 04/05/2018, 01-001/16, Date of Issue: 02/05/2016, 01-006/12, Date of Issue: 01/31/2012 and 11/30/2012

BULLETIN NOTES

This bulletin supersedes the previously issued bulletin(s) listed below.

PREVIOUSLY ISSUED BULLETIN LIST

Previous TSBs:	Date(s) Issued:
01-011/18	04/05/2018
01-001/16	02/05/2016
01-006/12	01/31/2012 and 11/30/2012

APPLICABLE MODEL(S)/VINS

2016-2019 CX-3	2013-2019 CX-5	2016-2019 CX-9
2014-2019 Mazda3	2014-2019 Mazda6	2016-2019 MX-5

DESCRIPTION

The vehicles listed above are equipped with a push button start/stop ignition system. Unlike previous Mazda models, there is no key cylinder on the steering column. Therefore, the engine cannot be started with the auxiliary key if the room fuse is removed or if the transmitter battery is dead.

NOTE:

The auxiliary key can only be used to lock or unlock the doors. It cannot be used to start the engine.
Two transmitters are placed in a vinyl bag and stored in the center console cup holder.
Since the room fuse is not installed during vehicle assembly, a new procedure is required to start the engine. Refer to "Engine Start Procedure" below.

Engine Start Procedure

Depress the brake pedal (ATX) or fully depress the clutch pedal (MTX)
Verify the START/STOP push button indicator light (A) flashes green.
Touch the START/STOP push button with the backside of the transmitter (B) with the Mazda ornament (C) facing upward (as shown below), while the push button indicator light is flashing green.
After the START/STOP push button indicator light changes to a constant green illumination, press the START/STOP push button with your finger to start the engine.

Engine Stop Procedure

Stop the vehicle completely.
Place the shift lever in Park position (ATX) or shift into neutral (MTX).
Press the START/STOP push button to turn the engine off. The ignition is now in the OFF position.

START/STOP Push Button Positions

Each time the START/STOP push button is pressed (without the brake pedal/clutch pedal depressed), the ignition switches through these positions:

OFF->ACC->ON->OFF

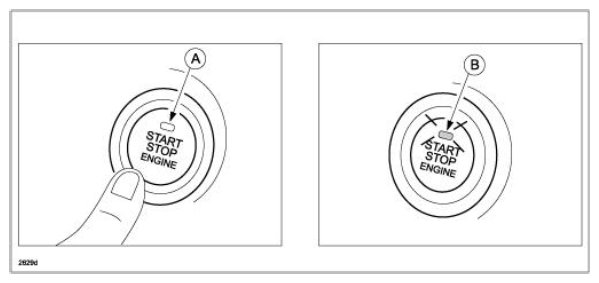

CAUTION: When leaving the vehicle, make sure that the START/STOP push button indicator light (A) is off. If the indicator light is on (B) (amber), the system is still in the ACC or ON position.
