U.S.A. and CANADA

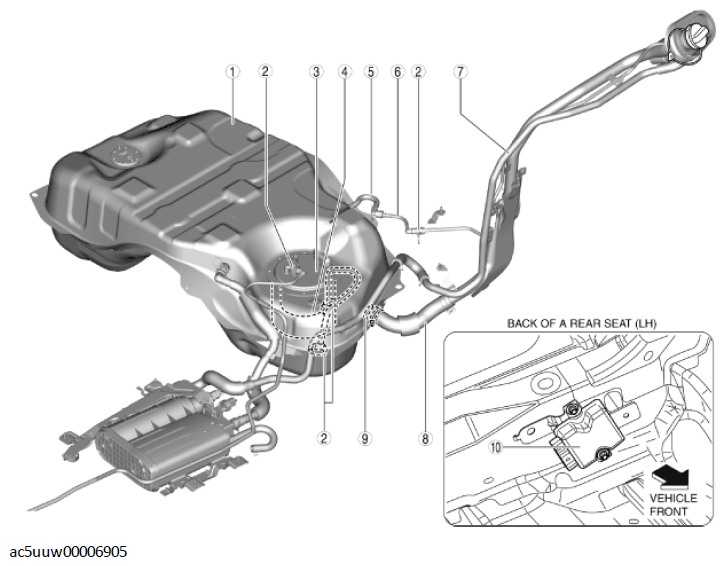

2WD
COMPONENT DESCRIPTION
| 1 | Fuel tank (See FUEL TANK REMOVAL/INSTALLATION .) (See FUEL TANK INSPECTION .) |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .) |
| 3 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY .) (See FUEL PUMP UNIT INSPECTION .) |
| 4 | Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION .)) |
| 5 | Breather hose (See FUEL TANK REMOVAL/INSTALLATION .) |
| 6 | Breather pipe (See FUEL TANK REMOVAL/INSTALLATION .) |
| 7 | Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION .) |
| 8 | Joint hose (See FUEL TANK REMOVAL/INSTALLATION .) |
| 9 | Non-return valve (See NON-RETURN VALVE INSPECTION .) |
| 10 | Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION .) (See FUEL PUMP CONTROL MODULE INSPECTION .) |

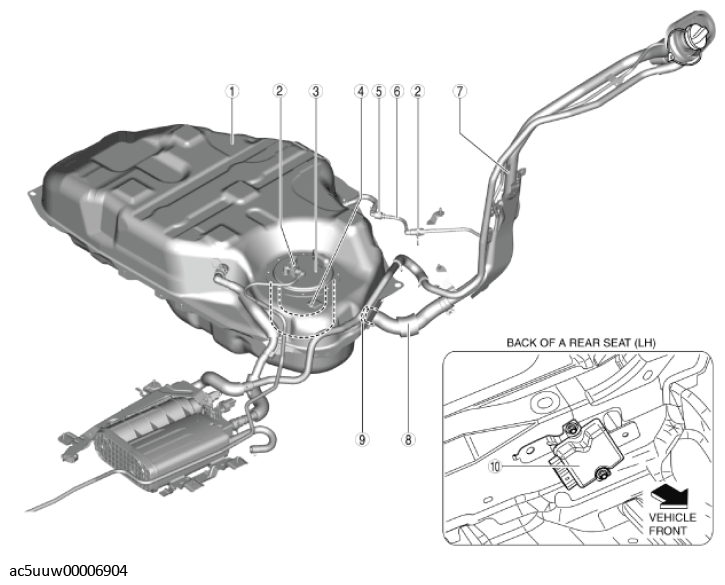

AWD
COMPONENT DESCRIPTION
| 1 | Fueltank (See FUEL TANK REMOVAL/INSTALLATION .) (See FUEL TANK INSPECTION .) |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .) |
| 3 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY .) (See FUEL PUMP UNIT INSPECTION .) |
| 4 | Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION .)) |
| 5 | Breather hose (See FUEL TANK REMOVAL/INSTALLATION .) |
| 6 | Breather pipe (See FUEL TANK REMOVAL/INSTALLATION .) |
| 7 | Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION .) |
| 8 | Joint hose (See FUEL TANK REMOVAL/INSTALLATION .) |
| 9 | Non-return valve (See NON-RETURN VALVE INSPECTION .) |
| 10 | Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION .) (See FUEL PUMP CONTROL MODULE INSPECTION .) |
