DTC B1048-7B; Brake Fluid Level Sensor Circuit Malfunction: Notes
DTC B1048-7B; BRAKE FLUID LEVEL SENSOR CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Brake fluid level sensor circuit malfunction |
| Detection condition |
- BCM detected that the brake fluid level is less than MIN with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Insufficient brake fluid level
- Brake fluid level sensor connector or terminal malfunction
- BCM connector or terminal malfunction

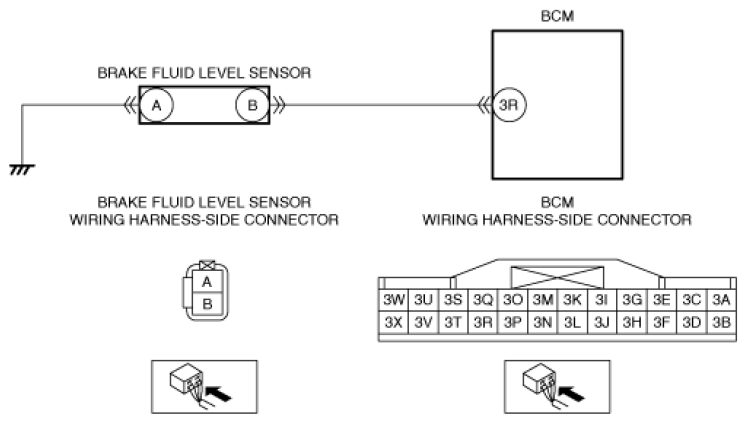

- Short to ground in wiring harness between brake fluid level sensor terminal B and BCM terminal 3R
- Brake fluid level sensor malfunction
- BCM malfunction
|
|
|
