Lock/Unlock Operation Not Possible Using Remote Transmitter [Security And Locks]: Notes
LOCK/UNLOCK OPERATION NOT POSSIBLE USING REMOTE TRANSMITTER [SECURITY AND LOCKS] - POSSIBLE CAUSE
| Description |
The door lock/unlock operation using the remote transmitter button is not possible. |
| Possible Causes |
- Keyless receiver malfunction
- Remote transmitter malfunction

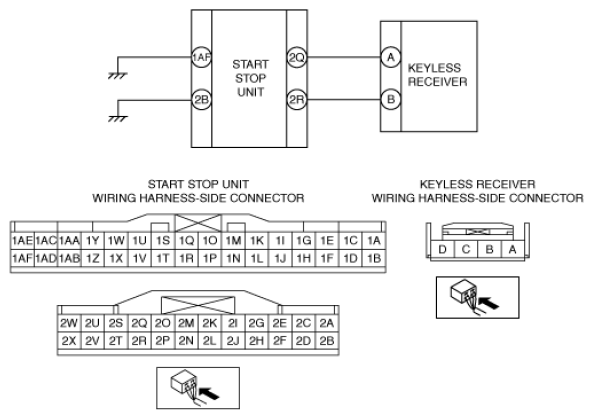

- Open circuit in wiring harness between the following terminals:
- Keyless receiver terminal A and start stop unit terminal 2Q
- Keyless receiver terminal B and start stop unit terminal 2R
- Start stop unit terminal 1AF and ground
- Start stop unit terminal 2B and ground
- Connector poor contact or terminal damage
- Customer's mis-operation or misunderstanding
- Effect of nonstandard equipment (any control unit with built-in micro computer such as radio set, mobile telephone, and TV)
|
|
|
