Rear Buckle Installation Note

After installing the rear buckle, place it as shown in the figure.

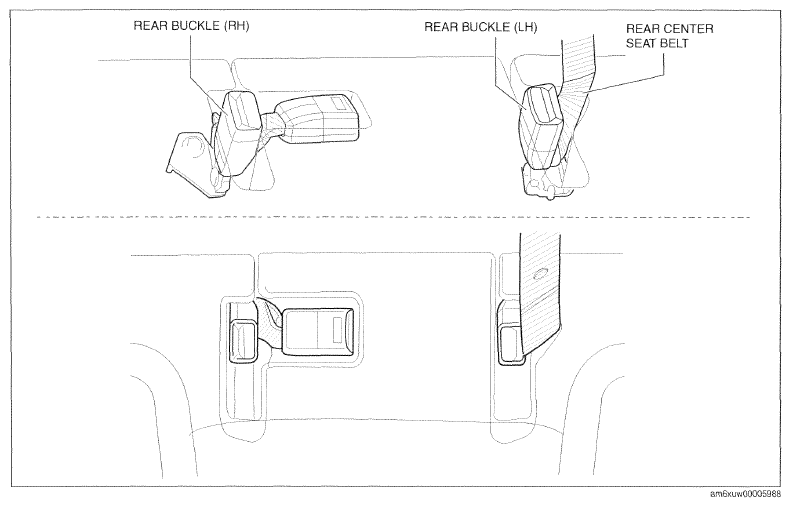

Fig 1: Locating Rear Buckle Position

G09787239

Courtesy of MAZDA MOTORS CORP.
