Section 5 (Air Bag System (Standard Deployment Control System))
>>
Air Bag System Component Location Index [Standard Deployment Control System]
Air Bag System Component Location Index [Standard Deployment Control System]
WARNING:
This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

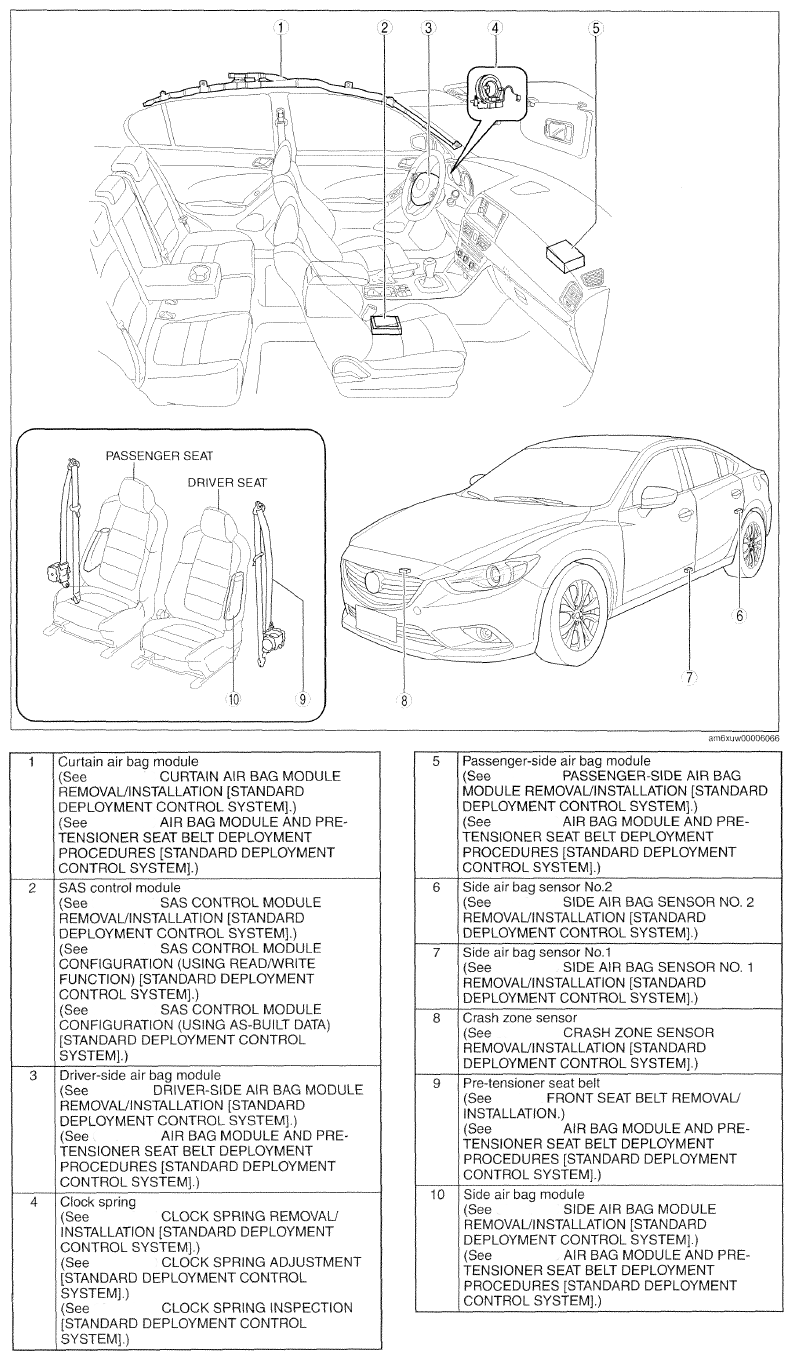

Fig 1: Air Bag System Location Components (Standard Deployment Control System)
Courtesy of MAZDA MOTORS CORP.
