AFS (Adaptive Front Lighting System)/Headlight Auto Leveling System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

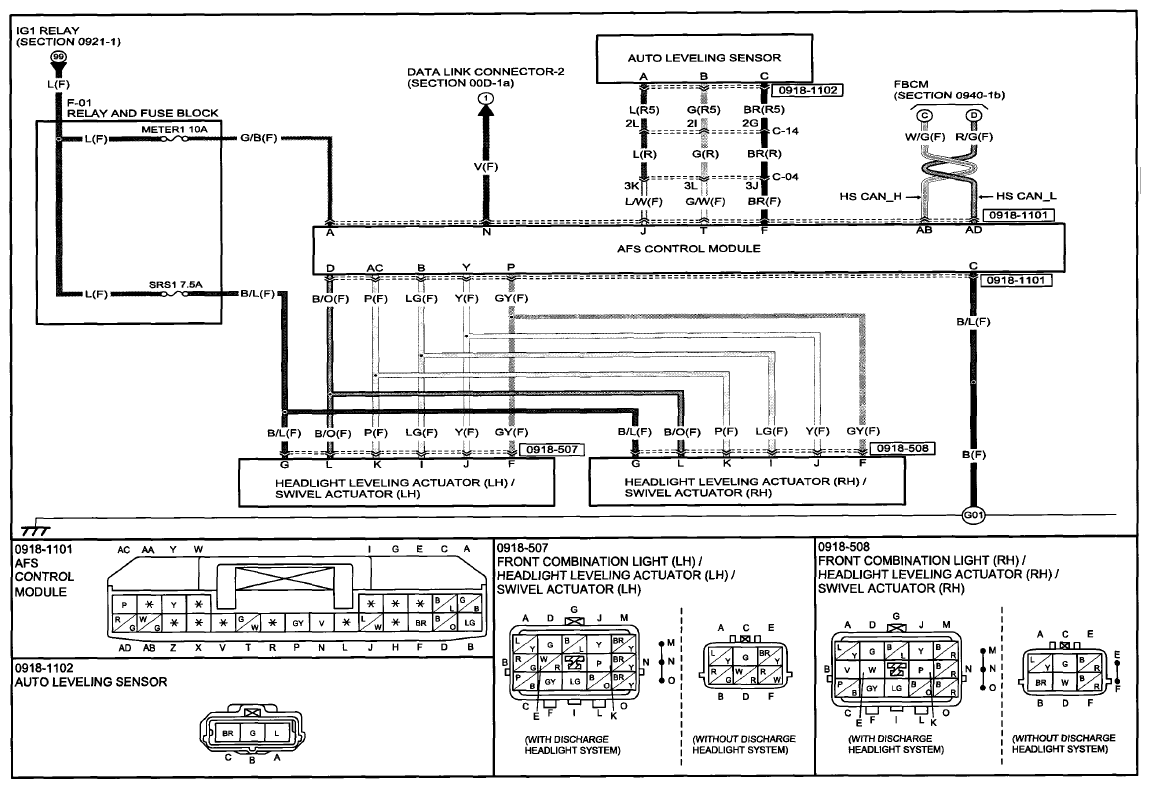

Fig 1: Adaptive Front Lighting System/Headlight Auto Leveling System Communication Diagram (0918-11)
G09757073Courtesy of MAZDA MOTORS CORP.

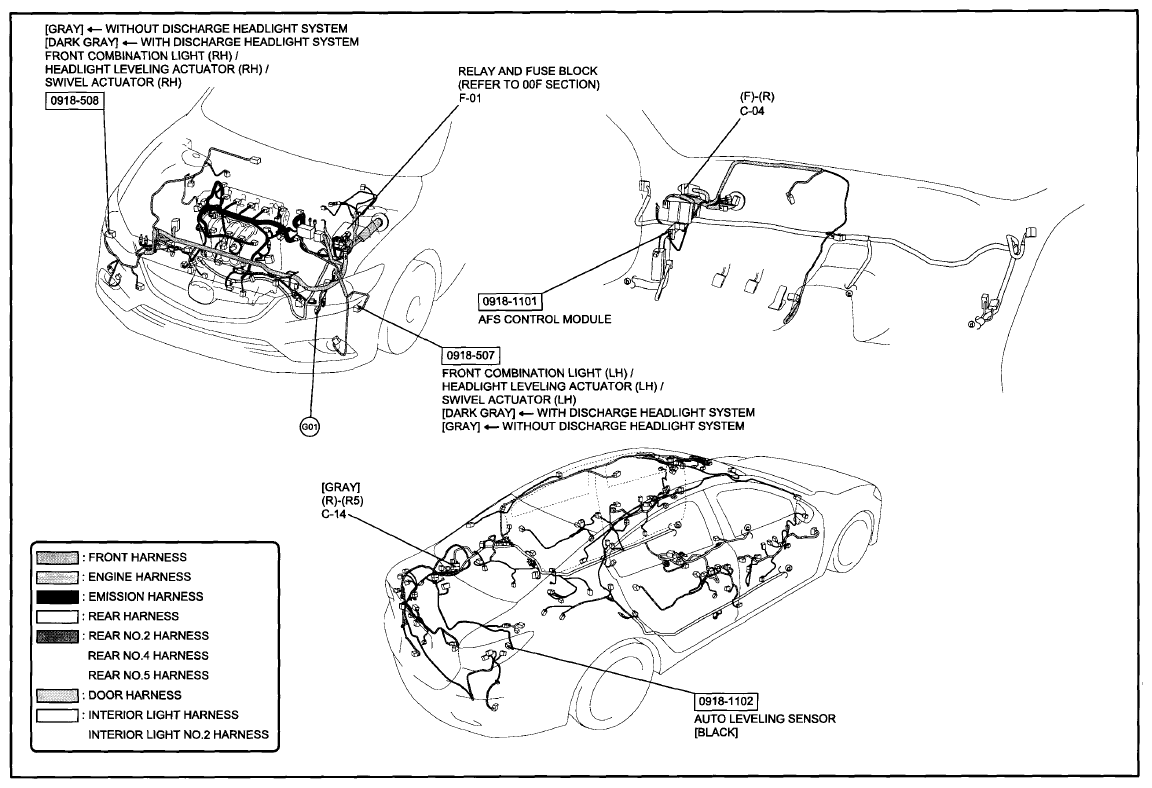

Fig 2: Adaptive Front Lighting System/Headlight Auto Leveling System Wiring Harness Connectors (0918-11)
G09757074Courtesy of MAZDA MOTORS CORP.
