HVAC Control System Location Index (Manual A/C)

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

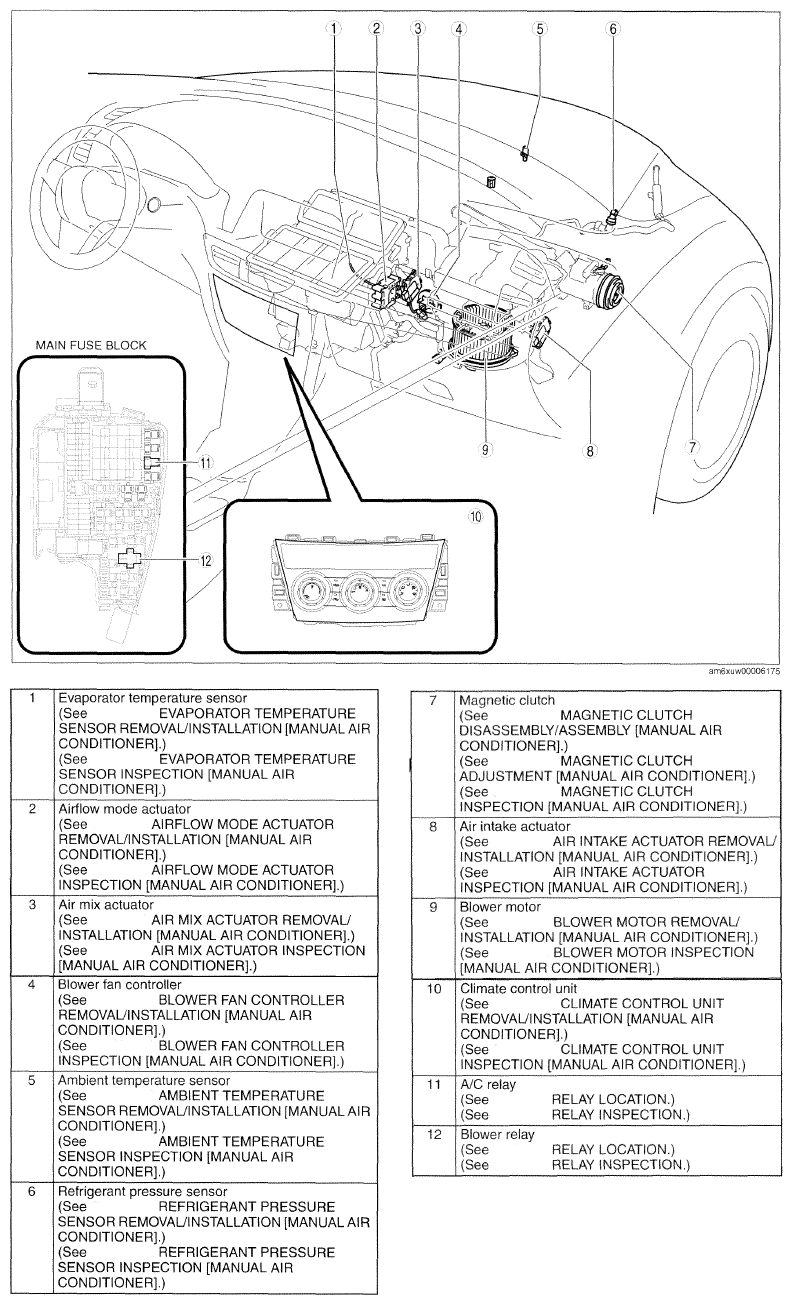

Fig 1: HVAC Control System Component Locations (Manual Air Conditioner)
G09786950Courtesy of MAZDA MOTORS CORP.
