On-Board Diagnostic Wiring Diagram [Two-Step Deployment Control System]

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

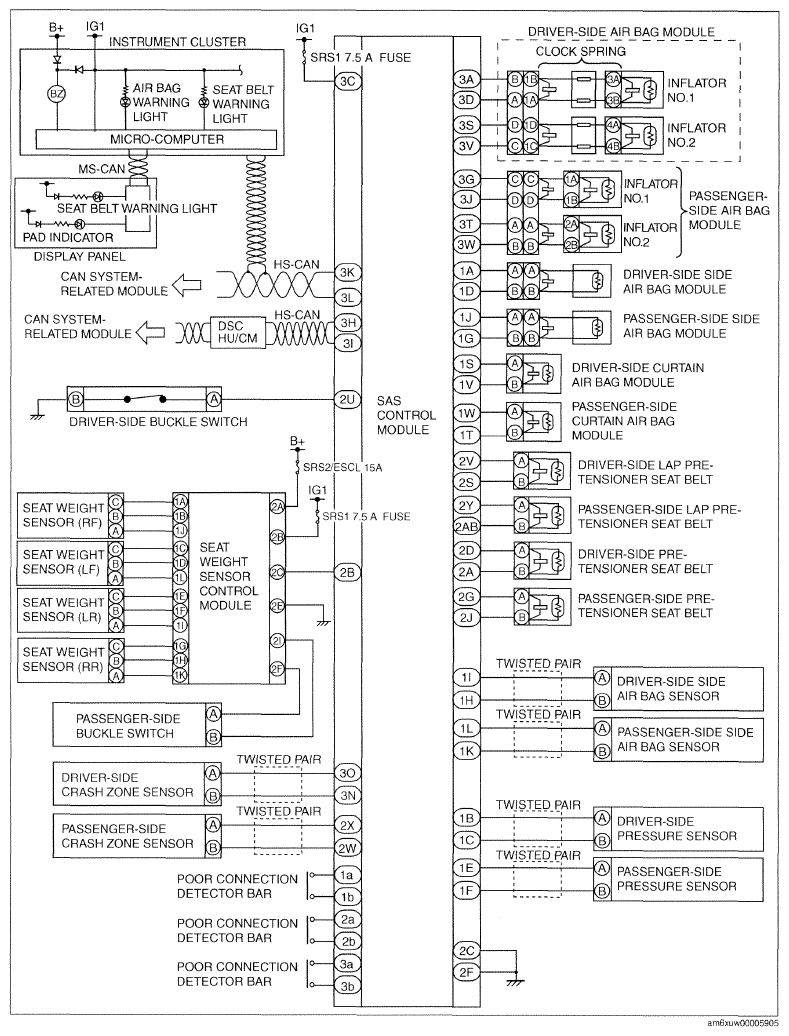

Fig 1: Restraints On-Board Diagnostic - Wiring Diagram (Two-Step Deployment Control System)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying SAS Control Module Harness Connector Terminals

Courtesy of MAZDA MOTORS CORP.
