Fuel Tank Removal/Installation
>>
Joint Hose Installation Note
>>
Fuel-filler pipe side
Fuel-filler pipe side

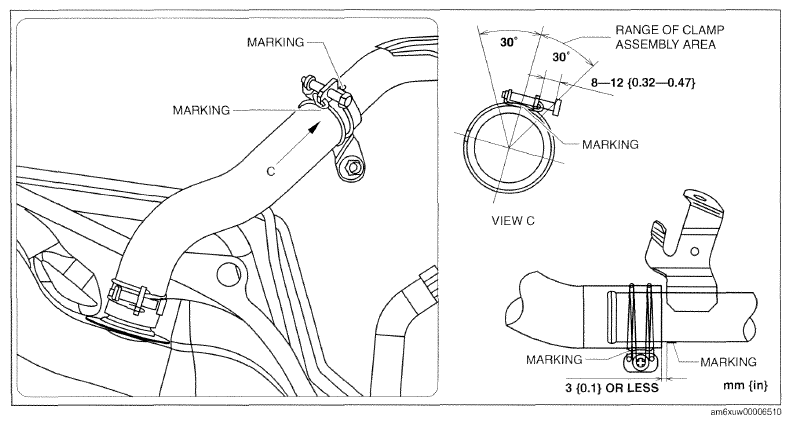

Fig 1: Fuel-Filler Pipe Side Joint Hose Installation Dimension
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
