U.S.A. and CANADA

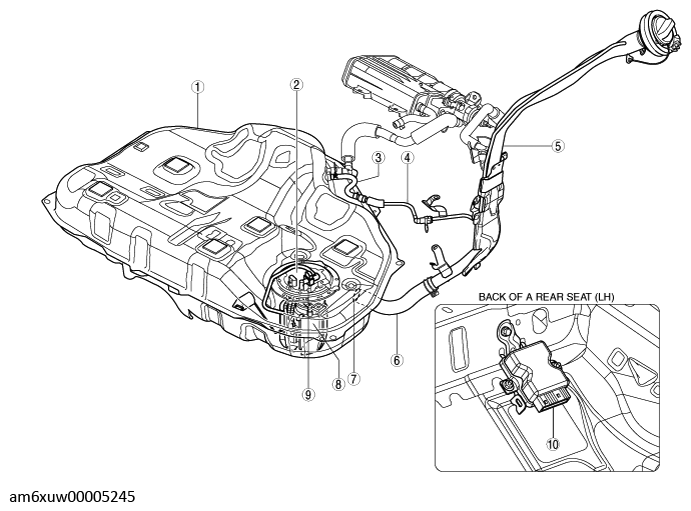

Fig 1: Engine Compartment Side Fuel System Component Location (U.S.A. And Canada)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION .) (See FUEL TANK INSPECTION .)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY .) (See FUEL PUMP UNIT INSPECTION .)
3	Breather hose (See FUEL TANK REMOVAL/INSTALLATION .)
4	Breather pipe (See FUEL TANK REMOVAL/INSTALLATION .)
5	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
6	Joint hose (See FUEL TANK REMOVAL/INSTALLATION .)
7	Non-return valve (See NON-RETURN VALVE INSPECTION .)
8	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION .)
9	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
10	Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION .) (See FUEL PUMP CONTROL MODULE INSPECTION .)
