Home >> Mazda >> 2017 >> 6 Touring, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Exhaust System Removal/Installation >> Step 1

Step 1

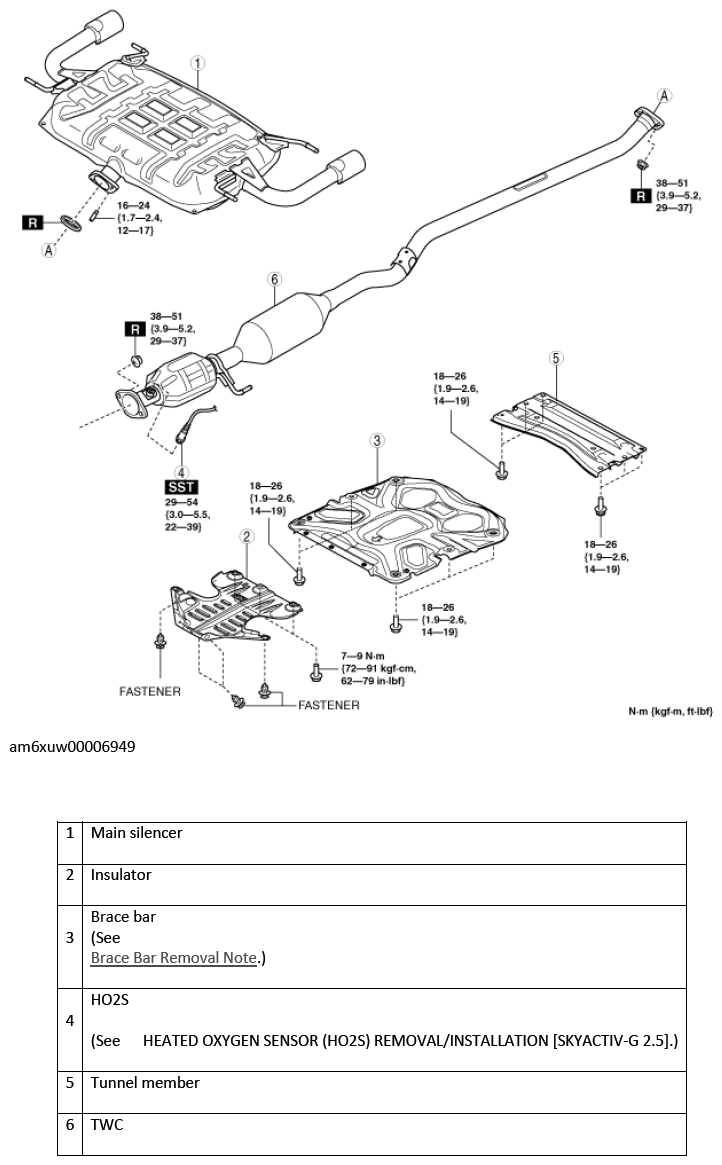

Fig 1: Removing/Installing Components Of Exhaust System With Torque Specification

G11546878

Courtesy of MAZDA MOTORS CORP.
