Exhaust Manifold Insulator Removal Note

  1. Remove the insulator as shown in the figure.

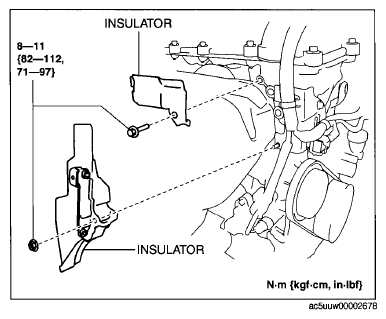

    Fig 1: Locating Exhaust Manifold Insulator With Torque Specification
    G09074418Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 1 engine mount rubber. (See ENGINE REMOVAL/INSTALLATION .)
  3. Move the engine.
  4. Remove the exhaust manifold insulator.
