With Forward Sensing Camera (FSC)

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)
  3. Disconnect the auto-dimming rearview mirror connector.

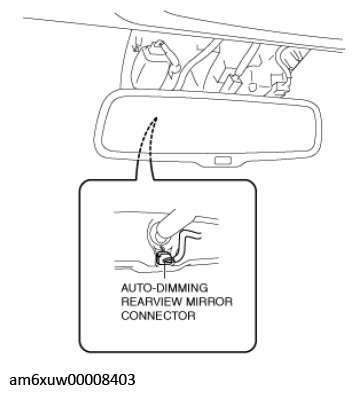

    Fig 1: Auto-Dimming Rearview Mirror Connector Location
    G11544270Courtesy of MAZDA MOTORS CORP.
  4. Loosen the screw.

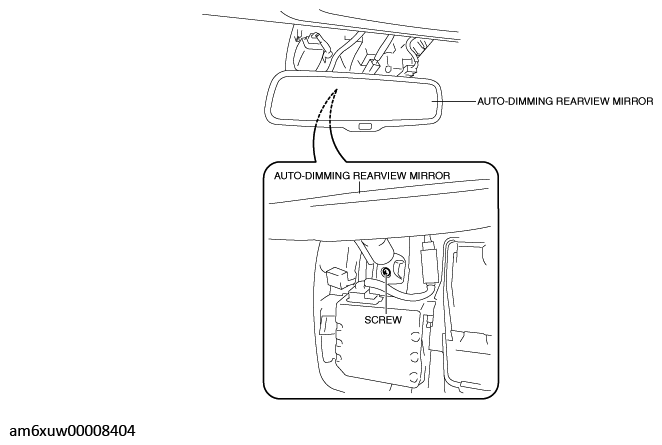

    Fig 2: Auto-Dimming Rearview Mirror Screw Location
    G11544271Courtesy of MAZDA MOTORS CORP.
  5. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

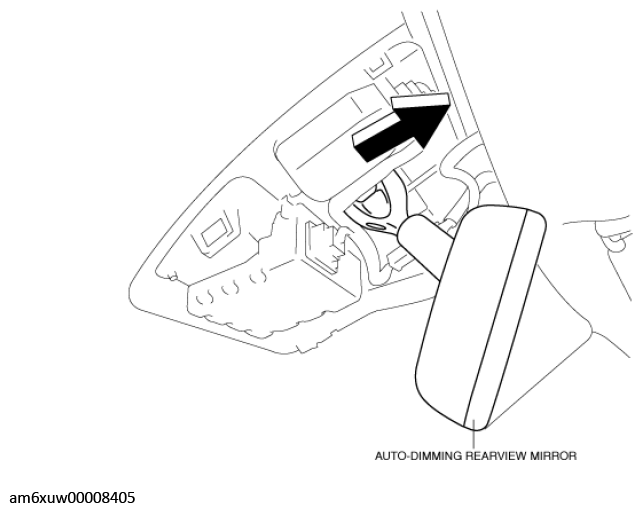

    Fig 3: Removing Auto-Dimming Rearview Mirror
    G11544272Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
