On-Vehicle Inspection

  1. Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
  2. Prepare for the on-vehicle inspection. (See ON-VEHICLE INSPECTION PREPARATION .)

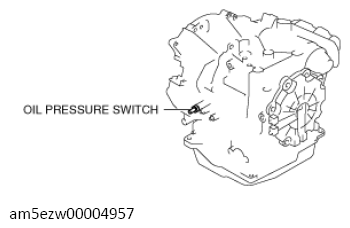

  3. Disconnect the oil pressure switch connector.
    G13727461Courtesy of MAZDA MOTORS CORP.
  4. Start the engine.
  5. Measure continuity between oil pressure switch terminal A and GND.
    G13727462Courtesy of MAZDA MOTORS CORP.
