Front Blower Motor Installation (Auto A/C): Notes

  1. Install the SST (49 B061 015A) to the front blower motor.

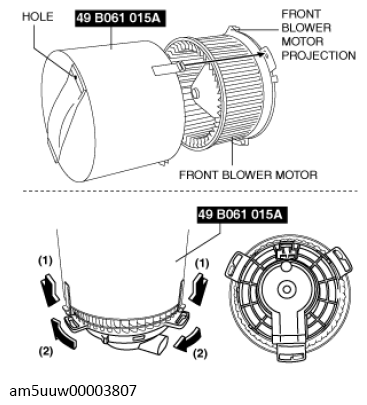

    G13728899Courtesy of MAZDA MOTORS CORP.
  2. Install the front blower motor with the SST (49 B061 015A) installed, to the A/C unit.
  3. Position the front blower motor projection upward and install the front blower motor to the A/C unit.
    CAUTION:
    • To prevent damage to the sirocco fan, install the front blower motor being careful that the front blower motor does not interfere with the A/C unit. Also, another person must hold the front blower motor at the installation position.

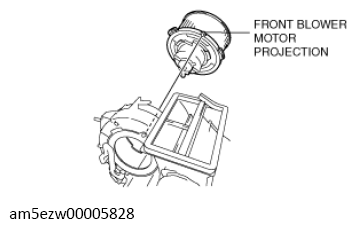

    G13728900Courtesy of MAZDA MOTORS CORP.
  4. To install, rotate the front blower motor cover until a click is heard.
    NOTE:
    • Install the front blower motor cover from the driver-side.

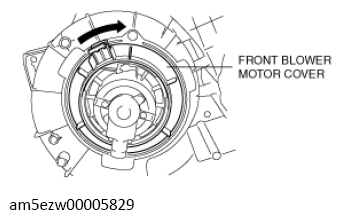

    G13728901Courtesy of MAZDA MOTORS CORP.
  5. Connect the front blower motor connector as shown in the figure.

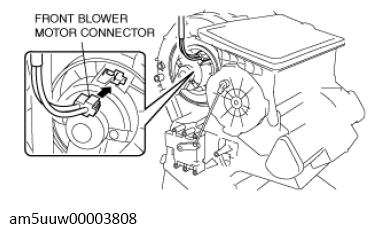

    G13728902Courtesy of MAZDA MOTORS CORP.
  6. Install the front blower motor cooling pipe.

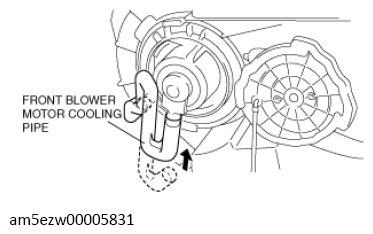

    G13728903Courtesy of MAZDA MOTORS CORP.
  7. Rotate the SST (49 B061 015A) in the direction shown by the arrow.

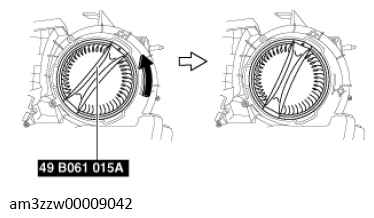

    G13728904Courtesy of MAZDA MOTORS CORP.
  8. Remove the SST (49 B061 015A) from the front blower motor.

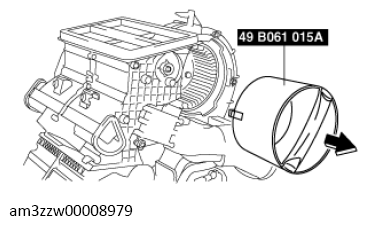

    G13728905Courtesy of MAZDA MOTORS CORP.
  9. Install the air guide.
    CAUTION:
    • Install the front blower case while pressing the dashboard insulator, otherwise the front blower case could be damaged.
  10. Insert the screw into the front blower case.
    G13728906Courtesy of MAZDA MOTORS CORP.
  11. Connect the air intake actuator connector.
  12. Insert the front blower case in the direction shown in the figure.

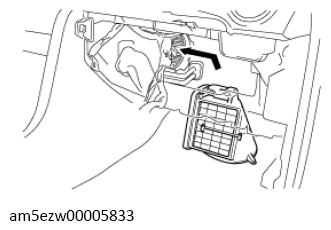

    G13728907Courtesy of MAZDA MOTORS CORP.

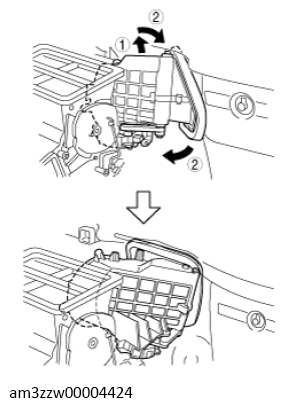

  13. Insert and rotating it in the directions of the arrows shown in the figure.
    G13728908Courtesy of MAZDA MOTORS CORP.
  14. Install the following parts:
    1. Brake pedal (See BRAKE PEDAL REMOVAL/INSTALLATION .)
    2. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
    3. Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .)
    4. Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    5. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    6. Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
    7. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    8. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
    9. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    10. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    11. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    12. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    13. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    14. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    15. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    16. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    17. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    18. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    19. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    20. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  15. Connect the negative battery cable.
