Exhaust Manifold Insulator Removal Note

  1. Remove the engine hanger.

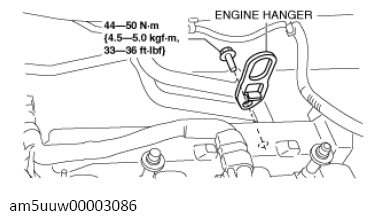

    Fig 1: Engine Hanger Bolts With Torque Specification
    G13726755Courtesy of MAZDA MOTORS CORP.
  2. Remove the exhaust manifold insulator.
