On-Vehicle Inspection

  1. Disconnect the coupler component connector.
    1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
    2. Disconnect the negative battery cable.
    3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.5] .)

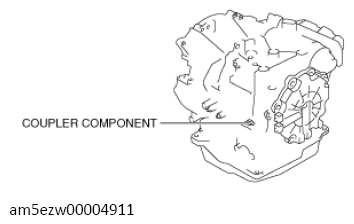

    4. Disconnect the coupler component connector.
    G13727495Courtesy of MAZDA MOTORS CORP.
  2. Measure the resistance between coupler component terminals E and H.
    G13727496Courtesy of MAZDA MOTORS CORP.
