Shift solenoid C

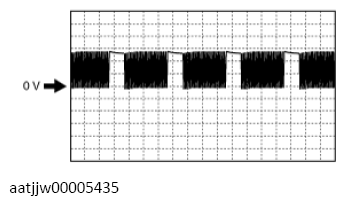

G13727490

Courtesy of MAZDA MOTORS CORP.

Terminal: AL (+)-GND (-)
Oscilloscope setting: 5 V/DIV (Y), 5 ms/DIV (X), DC range
Measurement condition: D position driving in 1GR
