Pressure control solenoid B

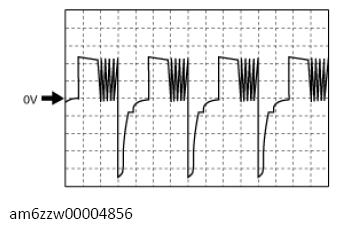

G13727493

Courtesy of MAZDA MOTORS CORP.

Terminal: AM (+)-GND (-)
Oscilloscope setting: 5 V/DIV (Y), 5 ms/DIV (X), DC range
Measurement condition: Shifting from 4GR to 5GR, 5GR to 4GR
