No. 1 Engine Mount, No. 4 Engine Mount Installation Note

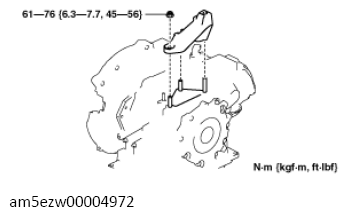

Install the No. 4 engine mount bracket to the transaxle case.

Fig 1: No. 4 Engine Mount Bracket Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

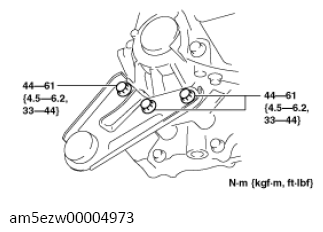

Install the No. 1 engine mount bracket to the converter housing.

Fig 2: No. 1 Engine Mount Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the No. 1 engine mount rubber and temporarily tighten the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Bolt length

Front crossmember side: approx. 62 mm {2.4 in}

No. 1 engine mount bracket side: approx. 65 mm {2.6 in}

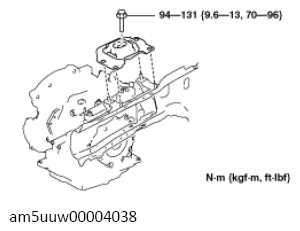

Insert the No. 4 engine mount rubber into the stud bolt of the body and tighten the bolt shown in the figure.

Fig 3: No. 4 Engine Mount Rubber Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

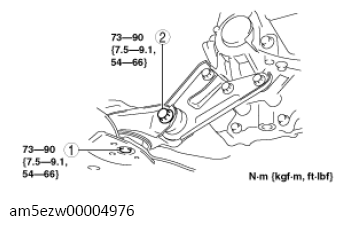

Completely tighten the No. 1 engine mount rubber bolts in the order shown in the figure.

Fig 4: No. 1 Engine Mount Rubber Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Insert the battery tray bracket into the stud bolt of the body from the upper side of the No. 4 engine mount rubber, and tighten the nuts.

Fig 5: Battery Tray Bracket, No. 4 Engine Mount Rubber, Stud Bolts And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the SST (49 C017 5A0).
