Not using UV light (black light)

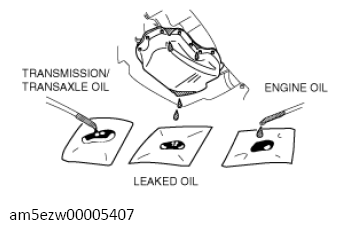

  1. Gather sample of the leaking oil using an absorbent white tissue.
  2. Then gather some sample of engine and transmission/transaxle oil onto a white cloth or piece of paper.
    • MT vehicles: Transmission/transaxle oil
    • AT vehicles: ATF
    • CVT vehicles: CVT fluid
  3. Compare the appearance and smell, and identify the type of oil that is leaking.
    G13726383Courtesy of MAZDA MOTORS CORP.
  4. Remove any oil on the engine or transmission/transaxle.
  5. Allow the engine to run for 30 min.
  6. Check the area where the oil is leaking, then make necessary repairs.
