Manual Transaxle Oil Replacement
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.
- Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)

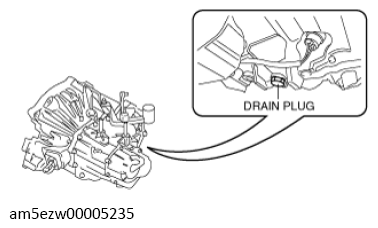

- Remove the drain plug and gasket, and drain the manual transaxle oil.
- Install a new gasket and the drain plug.
Tightening torque
39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}

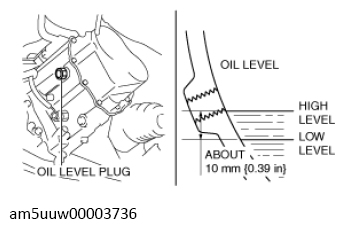

- Remove the oil level plug with gasket.
- Add the specified manual transaxle oil through the oil level plug hole.
Manual transaxle oil grade
API service GL-4
Manual transaxle oil viscosity
SAE 75W-80
Manual transaxle oil capacity (approx. quantity)
2.85 L {3.01 US qt, 2.51 Imp qt}
- Install a new gasket and the oil level plug.
Tightening torque
39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
- Install the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
