On-Board Diagnostic - Engine Control (1 Of 5)
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

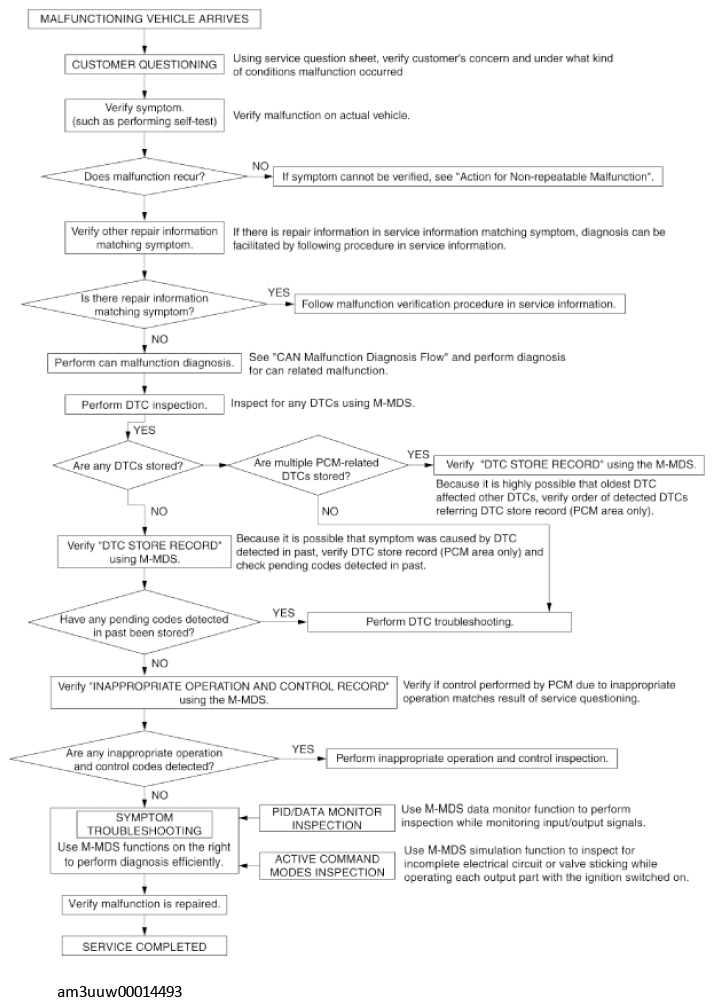

Fig 1: Foreword - PCM (Skyactiv-G 2.0, Skyactiv-G 2.5) Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
